This Shank is made from solid steel and is optional when extra height or drop is required.

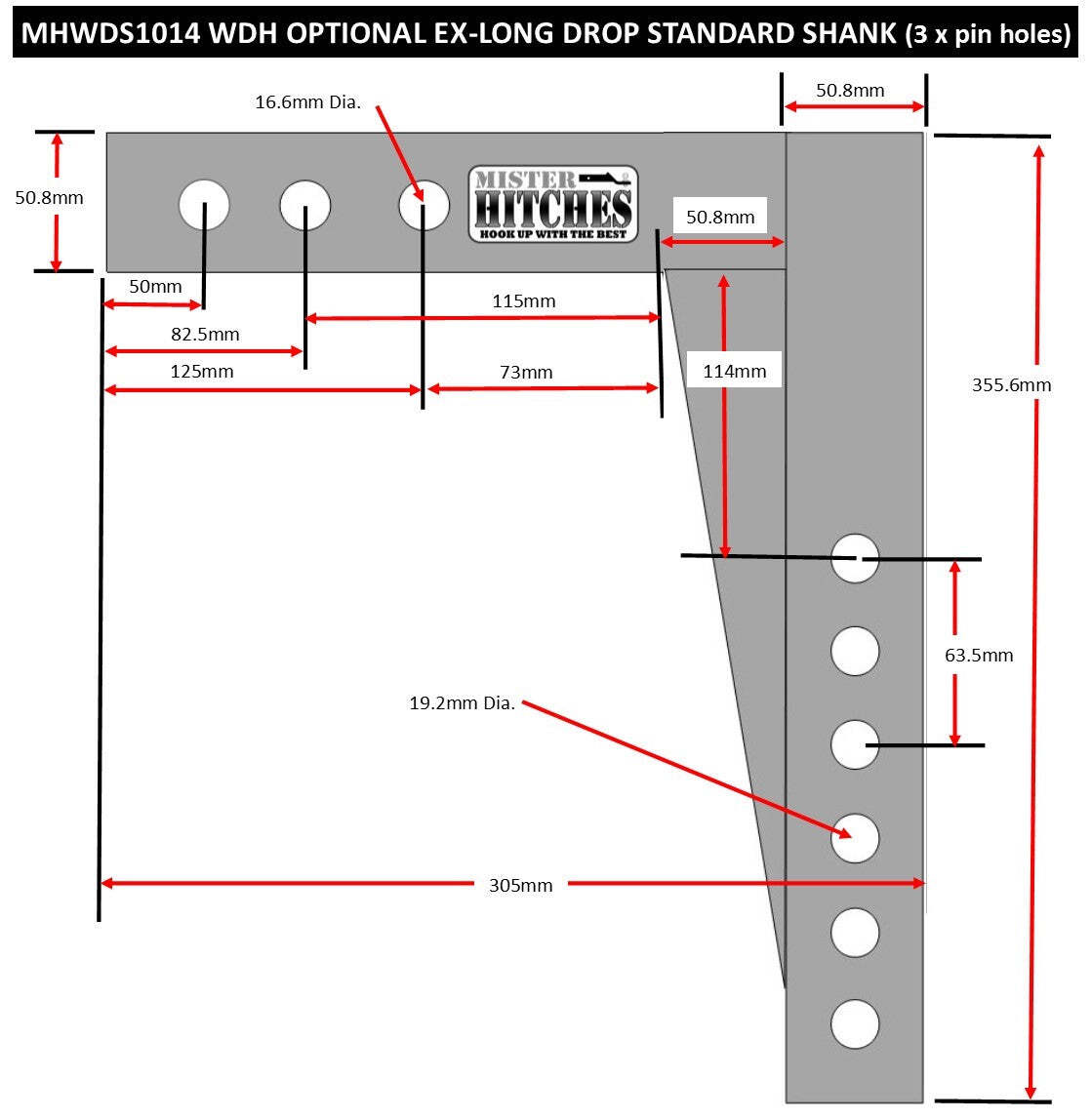

Shank is 50.8mm square and suits Hayman Reese Style Towbar Receivers.

Incorporates 3 Hitch Pin holes for greater adjustment, also can suit a short shank of a Ford Ranger Tow Bar.

Pin holes distance from end of the shank 50mm, 82.5mm and 125mm

Drop (Top of Shank to top of Ball Platform) = 229mm

Rose (Top of Shank to top of Ball Platform) = 330mm

Shank overall height = 355.6mm

All Mister Hitches drop shanks are made from solid steel high strength carbon steel (ATSM A36) & have a rated capacity of 4500kg. The rated towing capacity when used with a Mister Hitches Mix & Match adaptor is 3500kg. Compliant with the static test requirements of ADR62/02.

Please Note: Your towing capacity is determined by the lowest rated component of towing system e.g Vehicles tow & ball weight capacity, Tow ball, Tow Bar, Ball Mount etc.

Ball Couplings on tow bars are required to be installed so that the height of the centre of the body of the ball coupling is between 350mm and 420mm from the ground when laden (refer to ADR 62/01)

Compatible with Mister Hitches Multi-Hitch Ball Mount Adaptor MHMHBM Sold Separately.

SKU MHWDS1014
Barcode # 2000000011523
Brand Mister Hitches
Shipping Weight 11.9500kg
Shipping Width 0.330m
Shipping Height 0.070m
Shipping Length 0.370m
Shipping Cubic 0.008547000m3
