Mister Hitches WDS Drop Shank Suits Short Shank Ford Ranger

All mister hitches drop shanks are made from solid steel high strength carbon steel (ATSM A36) & have a rated capacity of 4500kg. The rated towing capacity when used with a mister hitches mix & match adaptor is 3500kg. Compliant with the static test requirements of ADR62/02.

Features:

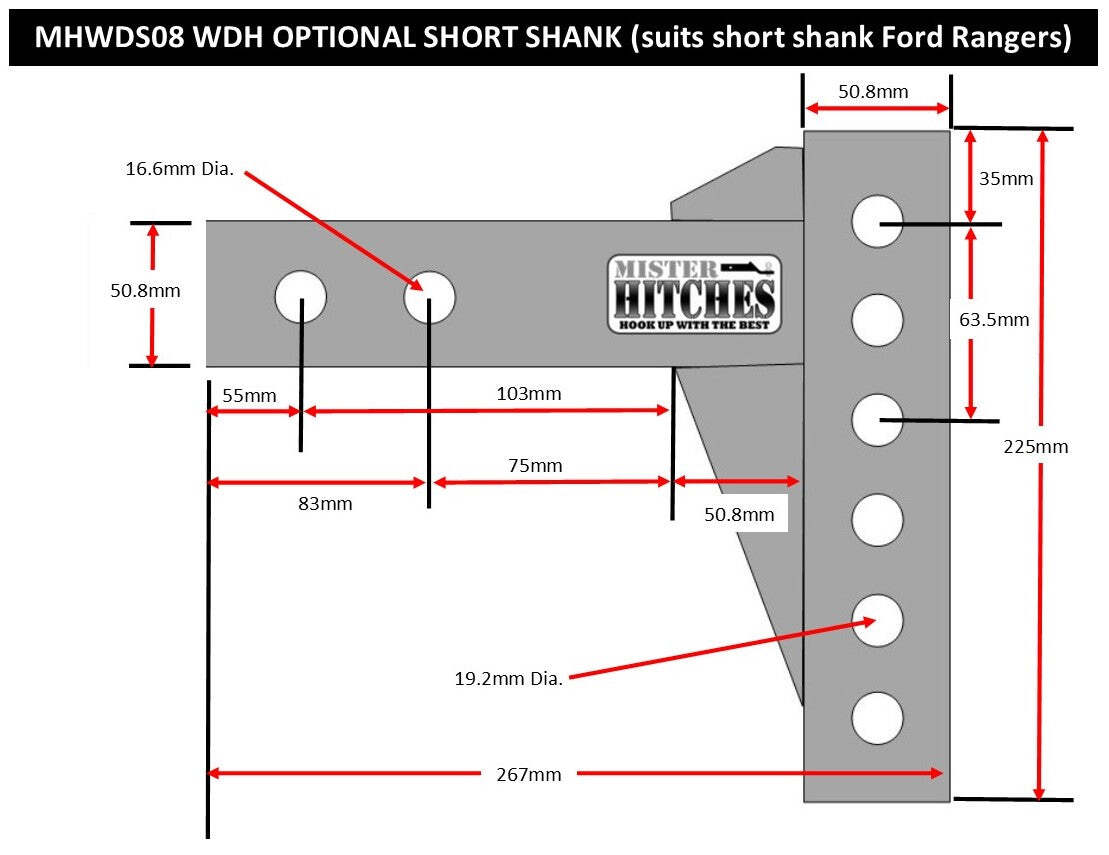

- This shank has a shorter shank length than the standard shank (approx 2" shorter in length)
- This shank also has 2 x pin holes (suitable for some ford rangers)
- 1. Centre of pin hole to end of shank = 55mm
- 2. Centre of pin hole to end of shank = 83mm
- Drop (top of shank to top of ball platform) = 63.5mm
- Rise (top of shank to top of ball platform)  = 165mm
- Shank overall height = 220mm
- Shank is solid steel 50.8mm  square suits Hayman Reese style towbar receivers

Please note: your towing capacity is determined by the lowest rated component of towing system e.g vehicles tow & ball weight capacity, tow ball, tow bar, ball mount etc.

Ball couplings on tow bars are required to be installed so that the height of the centre of the body of the ball coupling is between 350mm and 420mm from the ground when laden (refer to ADR 62/01)

Compatible with mister hitches multi-hitch ball mount adaptor - MHMHBM sold separately.

SKU MHWDS08
Brand Mister Hitches
Shipping Weight 8.5000kg
Shipping Width 0.250m
Shipping Height 0.070m
Shipping Length 0.290m
Shipping Cubic 0.005075000m3
