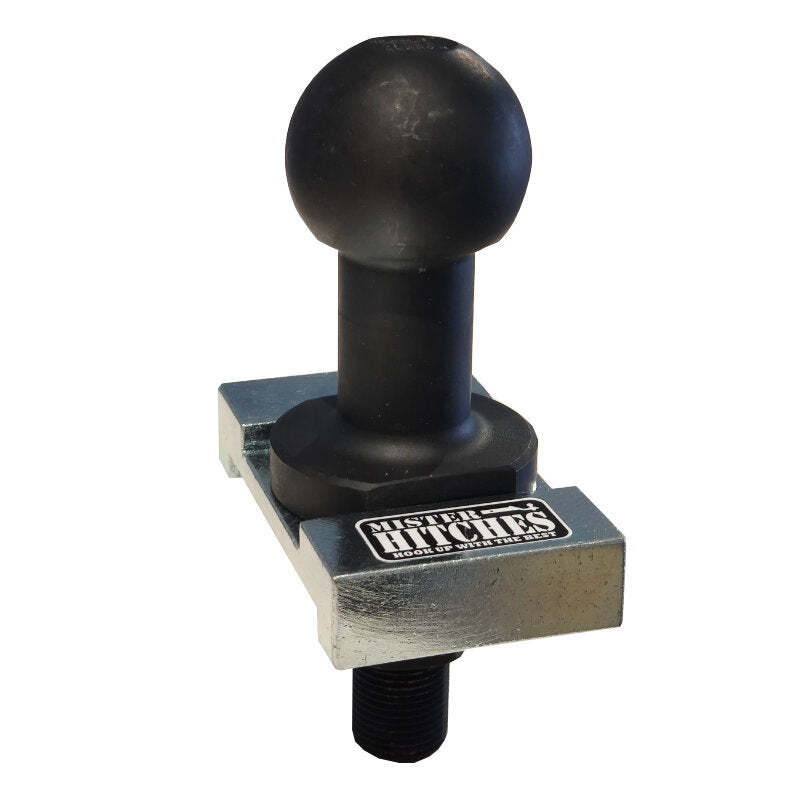

Hi Rise Tow Ball & Retention Plate Suits AL-KO AKS friction couplings

Designed for when you require a little bit of extra height and also for use with European style friction head trailer couplings for example AL-KO AKS.

Features:

- The Tow Ball is approx. 24-25mm higher than a standard Tow Ball.
- This Tow Ball & Retention Plate Kit is suitable for use with the AL-KO AKS friction couplings AKS2003 & AKS3004
Ball diameter: 50mm
Black Oxide finish.
- Load capacity: 3500kg
- Shank diameter: 7/8" (22.2mm)
- Shank length: 65mm
- Black oxide finish
- Flat sided base for ease of tightening & removal
- 53mm between tow ball flats
- Includes spring washer & nut
- Complies with Australian Standards AS/NZS 4177.2.

Retention plate:

  • Suits 75mm wide tow ball mounts

  • Zinc plated for corrosion protection

  • Can be used with mhtb50hrb hi-rise tow ball or mhtb50bb standard height tow ball

  • This kit suits the al-ko european aks couplings and is designed to stop the tow ball from rotating when coupling friction is applied.

SKU MHTBHRK
Barcode # 2000000010632
Brand Mister Hitches
Shipping Weight 1.0000kg
