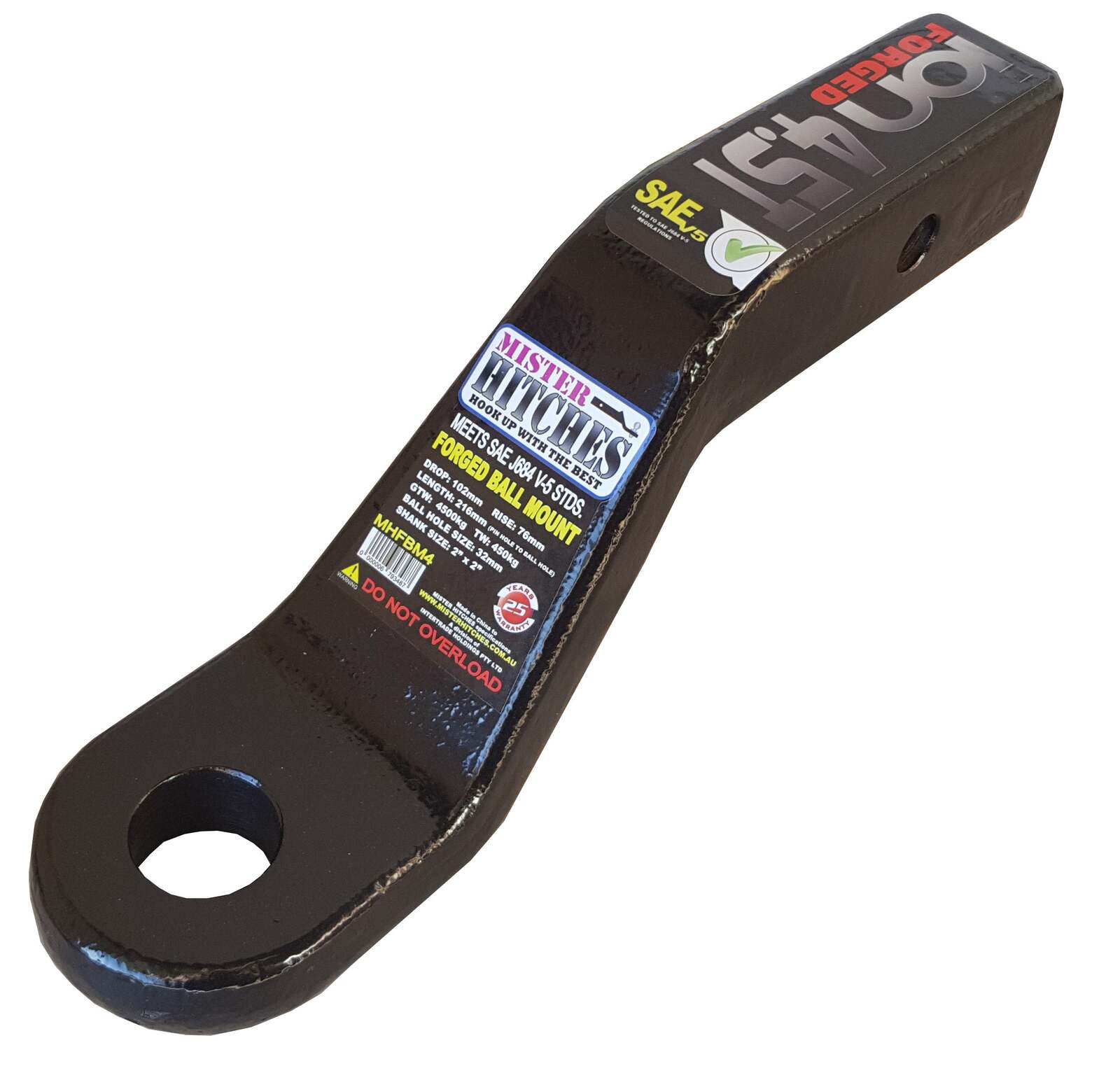

• DROP FORGED FOR EXTREME DURABILITY
  • SOLID SHANK
  • REVERSIBLE - RAISES OR LOWERS BALL TO THE RIGHT LEVEL FOR TOWING
  • COMPLIES WITH THE TEST REQUIREMENTS OF ADR/62
  • FITS 2" X 2" TOWBAR RECEIVERS
  • SUITS 70MM TOW BALL or DO45 PIN

GROSS TRAILER WEIGHT: 4500KG

TONGUE WEIGHT: 450KG

BALL HOLE SIZE: 1 1/4" / 70mm (available is a reducing bush to reduce 1-1/4" to standard 7/8" to suit 50mm tow balls Part No. MHRB

DROP: 102MM (4")

RISE: 76MM (3")

LENGTH: 216MM (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE)

NOTE: TOW BALL IS NOT INCLUDED WITH THIS PART NUMBER

SKU MHFBM4
Barcode # 2000000010090
Brand Mister Hitches
Shipping Weight 5.7000kg
Shipping Width 0.120m
Shipping Height 0.110m
Shipping Length 0.380m
Shipping Cubic 0.005016000m3
