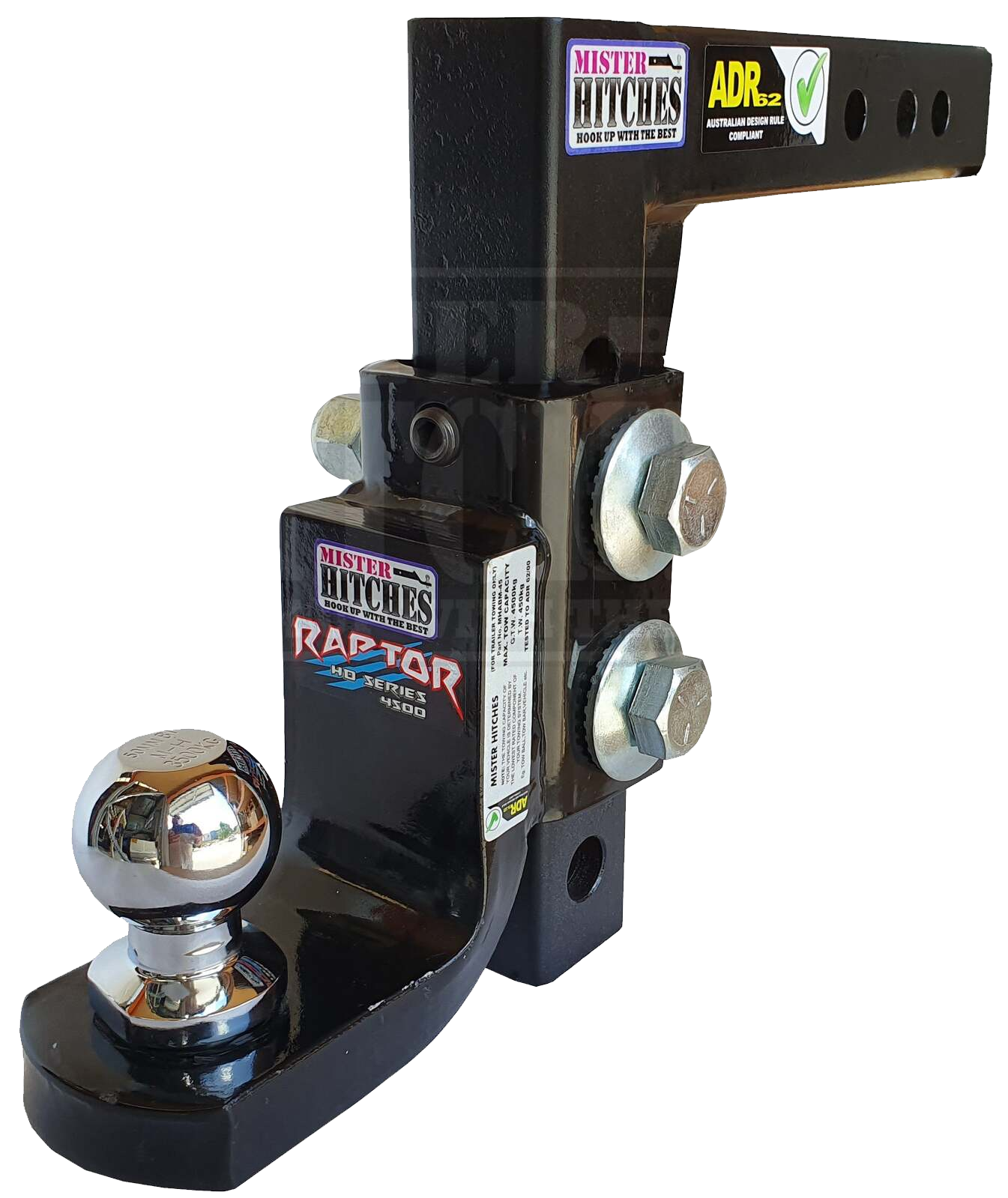

The Mister Hitches Raptor adjustable hitch has 16 stages of adjustment and is fully reversible. The only hitch you will ever need!

Features:

- 4500kg max tow capacity
- 450kg max T.W
- Tested and compliant with ADR62/02
- Solid steel shank with dual gussets for superior strength
- Suits both 50mm or 70mm ball
- Reversible shank and ball platform give greater drop or rise height capabilities
- Adjustments offer 16 stages with a max. rise of 286mm and a max. drop of 305mm
- Multi pin holes give 3 length adjustments of 315mm, 340mm, 365mm
- High tensile 3/4" bolts, nyloc locking nuts and toothed conical washers give superior strength
- Powder coated enamel finish

Compatible with Hitchmaster/ Cruisemaster DO35, TREG, McHitch, Hitch-Ezy, AL-KO, Ox Hitch 4.5T and ARK couplings. Also suitable for the Ford Ranger shorter shank tow bar.

Optional shanks:

  • MHABM45-1 Max drop 210mm. Max rise 188mm
  • MHABM45-S2 Max drop 305mm. Max rise 286mm
  • MHABM45-S3 Max drop 370mm. Max rise 350mm
  • MHABM45-S25 2-1/2" Max drop 245mm. Max rise 205mm. Suits 63.5mm tow bar receiver

Tow ball sold separately.

NOTE: Ball couplings on tow bars are required to be installed so that the height of the centre of the body of the coupling ball is between 350mm and 420mm from the ground when laden - ADR62/01.





SKU MHABM45-S2
Barcode # 2000000010250
Brand Mister Hitches
Shipping Weight 16.6000kg
Shipping Width 0.340m
Shipping Height 0.110m
Shipping Length 0.370m
Shipping Cubic 0.013838000m3
