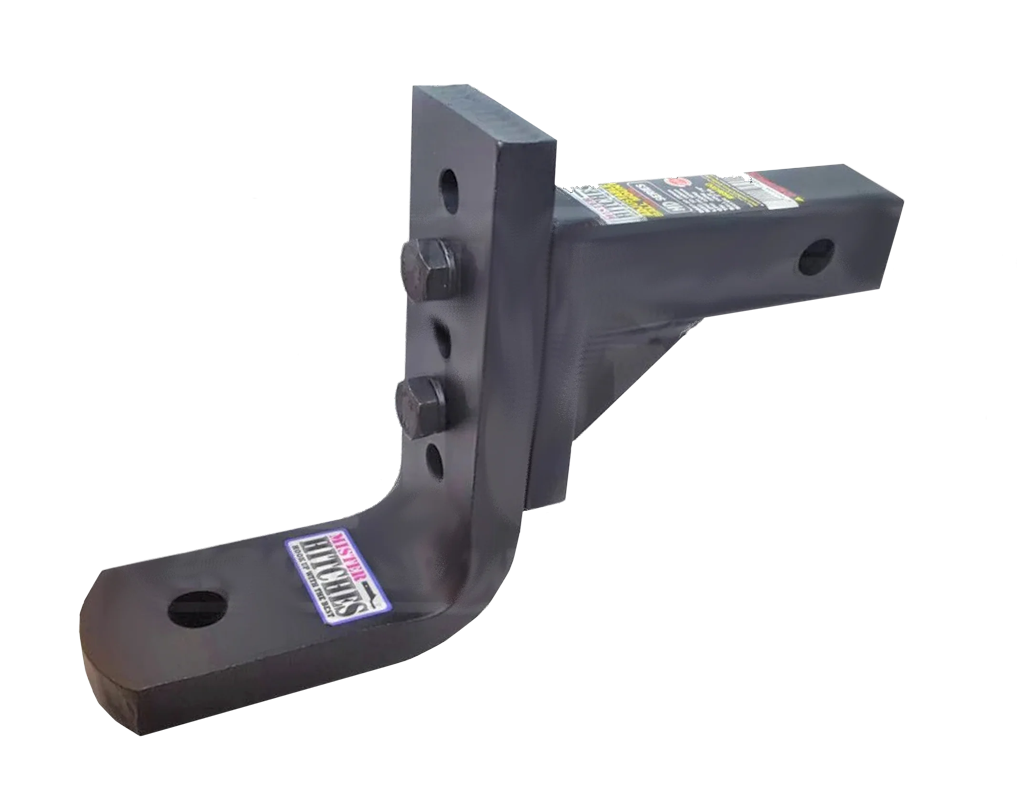

Mister Hitches 12 Stage Adjustable Ball Mount 4000kg  - Short Shank

Due to many requests Mister Hitches has now developed a short shank version of their ever popular MHABM-5XHD. The shorter shank is also suitable for a short shanked tow bar e.g. Ford Ranger and next gen Rangers. This hitch has a 25mm x 75mm ball platform and is one of only a few ball mounts which is suitable for the Stone Stomper. The hitch is fully reversible which gives 12 mounting adjustments. Dual 10mm gussets, a 5.75mm thick shank wall & H.T. 12.9 grade mounting hardware makes this one of the strongest & most versatile hitches on the market.

Features:

- G.T.W. 4000kg T.W. 400kg
- Pin hole to ball hole 262mm
- Pin hole to gusset 70mm
- 12 adjustable positions
- Drop 80-186mm Rise 50-160mm
- 5.75mm Thick walled steel shank, robotic welded for strength
- Dual 10mm Gussets
- High Tensile 12.9 Grade bolts
- Seaguard matte black powder coat finish gives superior corrosion protection
- Complies to the testing requirements of ADR & Australian Standards where applicable
- Fits 2" x 2" Towbar receivers (50mm)
- Ball Hole size 7/8"
- Compatible with DO35 Pin

Do not overload.

Express Post may be available depending on your location. Please contact us for more information and cost.

Parcel Size 23 x 19 x 9 - 8.0

SKU MHABM-5XHDS
Barcode # 2000000010281
Brand Mister Hitches
Shipping Weight 8.0000kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.190m
Shipping Cubic 0.004104000m3
