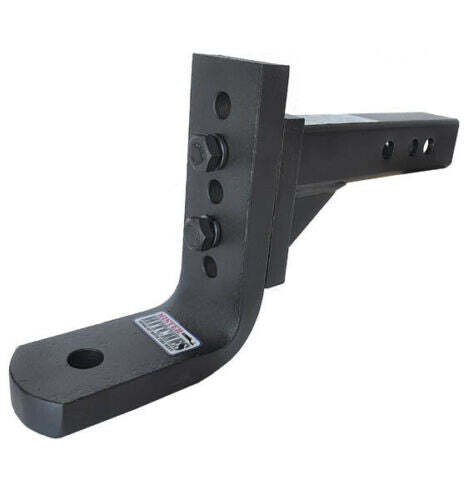

Mister Hitches 12 Stage Adjustable Ball Mount 4000kg

This popular hitch has now been improved to make it more versatile and stronger. 3 pin holes have been added to give greater flexibility and suitability for a short shanked tow bar, e.g. Ford Ranger.

Features:

- This hitch has a 25mm x 75mm ball platform and is one of only a few ball mounts which is suitable for the Stone Stomper.
- This hitch is fully reversible which gives you 12 mounting adjustments. Dual 10mm gussets, a 6.2mm thick shank wall & H.T. 12.9 grade mounting hardware make this one of the strongest & most versatile hitches on the market.

Specifications:

- G.T.W 4000kg T.W 400kg
- 3 Pin Holes to give lengths 266/305/331mm
- 12 Adjustable positions
- Drop 80-186mm Rise 50-160mm
- 6.2mm Thick walled steel shank, robotic welded for strength
- Dual 10mm Gussets
- High Tensile 12.9 Grade Bolts
- Seaguard matte black powder coated finish gives superior corrosion protection
- Complies to the testing requirements of ADR & Australian Standards where applicable
- Fits 2" x 2" Towbar Receivers (50mm)
- Ball hole size 7/8"
- Compatible with DO35 Pin

Shank Lengths: (measured from centre of pin hole to end of shank)

266MM LENGTH PIN HOLE TO END OF SHANK 115MM

305MM LENGTH PIN HOLE TO END OF SHANK 76MM

331MM LENGTH PIN HOLE TO END OF SHANK 50MM (SUITS FORD RANGER)

Express Post may be available depending on your location. Please contact us for more information and cost.

Parcel Size 30 x 19 x 9 - 9kg.

SKU MHABM-5XHD
Brand Mister Hitches
Shipping Weight 9.0000kg
Shipping Width 0.300m
Shipping Height 0.900m
Shipping Length 0.190m
Shipping Cubic 0.051300000m3
