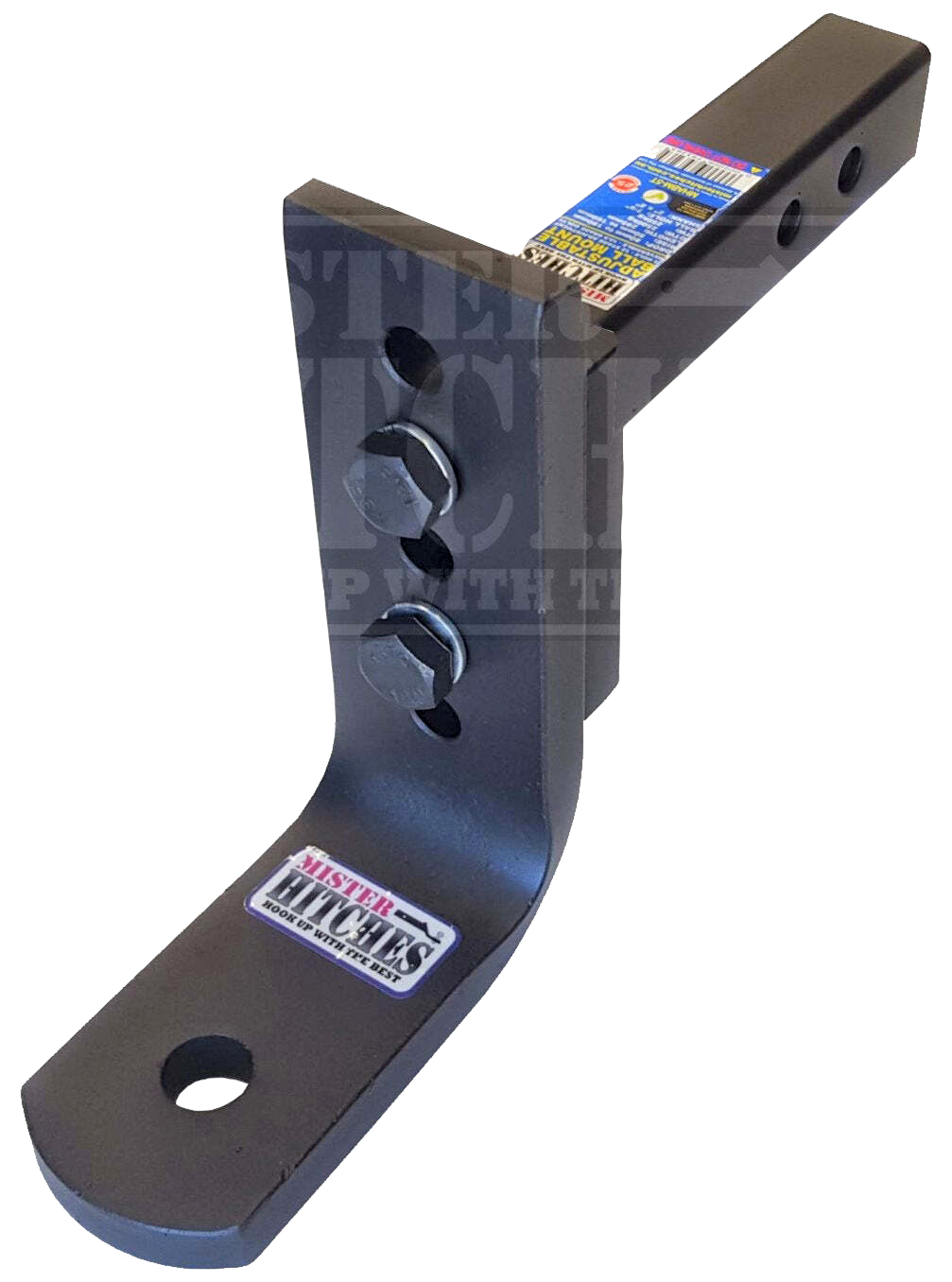

The Original & still the best. Designed and developed by MISTER HITCHES.

SUITABLE FOR VEHICLES WITH 40mm X 40mm RECEIVER TOW BARS

2 pin holes have been added to give greater length flexibility and suitability.

This hitch has a 20mm x 75mm ball platform.

The hitch is fully reversible which gives you 12 mounting adjustments. H.T. 12.9 grade mounting hardware

Features:

  • G.T.W.: 1800kg  T.W.: 180kg

  • 2PIN HOLES TO GIVE LENGTHS: 237/267mm

  • 12 ADJUSTABLE POSITIONS.

  • MAX DROP: 186mm  MAX RISE: 166mm (32mm increments)

  • 5.75mm THICK WALLED 40mm x 40mm sq. STEEL SHANK, ROBOTIC WELDED FOR STRENGTH.

  • HIGH TENSILE 12.9 GRADE BOLTS.

  • SEAGUARDMATTE BLACK POWDER COAT FINISH GIVES SUPERIOR CORROSION PROTECTION.

  • COMPLIES TO THE TESTING REQUIREMENTS OF ADR & AUSTRALIAN STANDARDS WHERE APPLICABLE

  • DO NOT OVERLOAD.

SKU MHABM-40
Barcode # 2000000010311
Brand Mister Hitches
Shipping Weight 7.0000kg
