Pickup from Unit 1 / 9 Lukis Ave, Richmond NSW 2753 only.

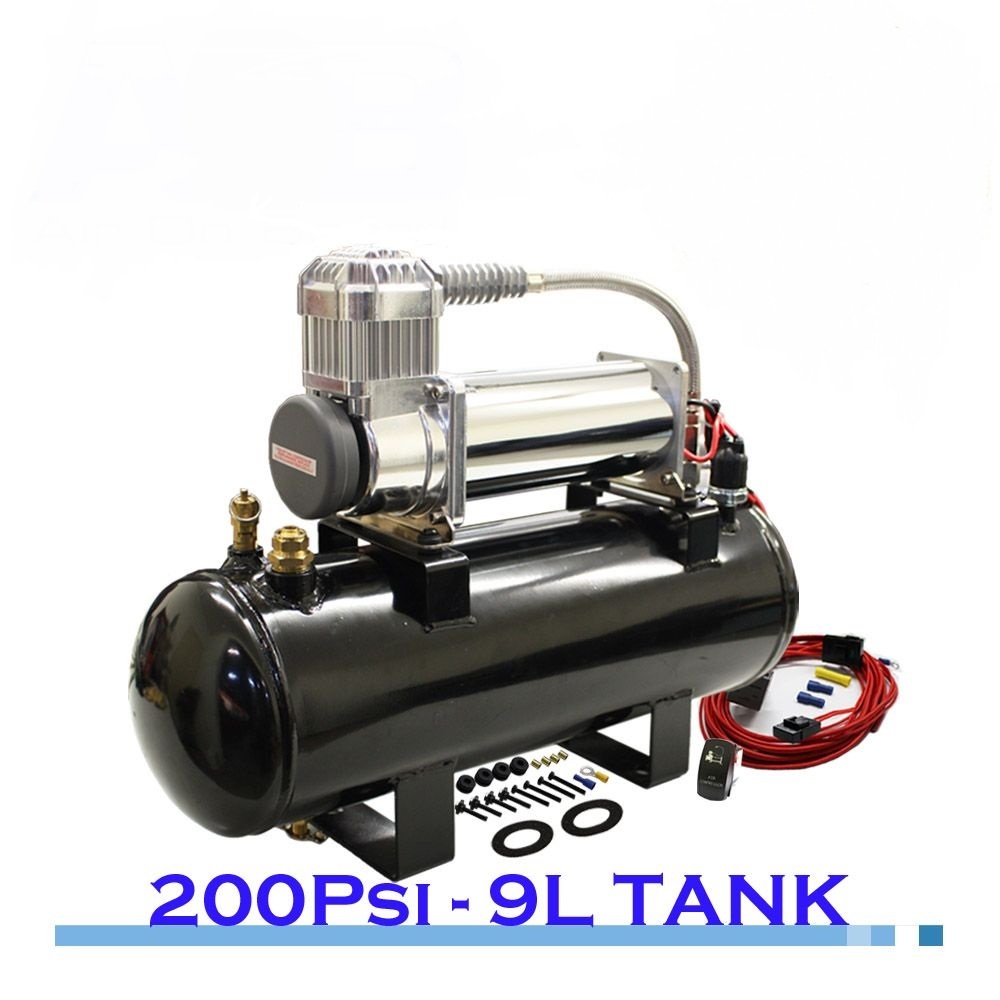

The kit comes with all the following items:

  • Air compressor
  • 9 litre tank rated at 200psi
  • 120 Psi on / 150 Psi off heavy duty pressure switch
  • Drain valve
  • Safety valve
  • Mounting Bolts
  • Inline discharge check valve
  • Rubber bush compressor mount
  • Full wiring kit
  • Instruction Manual

It can be used to fill tires, run Air jacks, pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your Trailer, 4WD or car.

  • 12-Volt DC
  • Duty cycle: 100% @ 100psi
  • Max working pressure: 200 psi
  • Amp draw: 23 Amps
  • Dimension with Compressor: 485mm x 151mm x 365mm (L x W x H)
  • Dimension of Tank only: 485mm x 151mm x 195 mm (L x W x H)
  • Fill time: 0 to 150psi = 3 minutes, 33 seconds.
  • Fill a 31/10.5/R15 Tyre from 16 psi to 34 psi in a 38 seconds

Carton Dimensions 10.6kg 58cm x 23cm x 42cm



SKU AOBCM500B
Brand Fineline Trailers
Shipping Weight 11.0000kg
