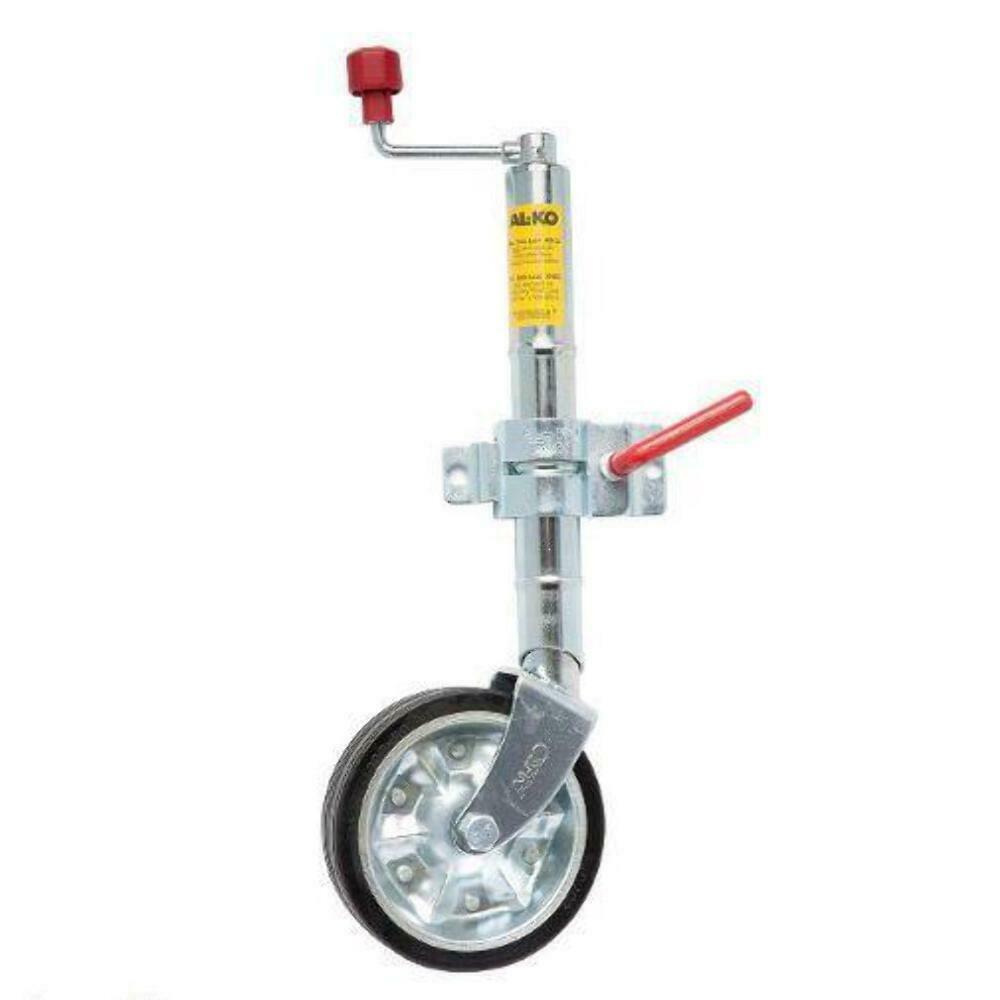

The AL-KO 628100 is a standard height jockey wheel with a 200mm (8") solid tyre. The zinc coated 48mm diameter shaft has 3 clamping positions providing a lift range of 262mm to 697mm between the ground and centre of drawbar. This unit is ideal for caravans or trailers which require movement on soft or uneven ground once detached from tow vehicle.

This unit includes the standard AL-KO clamp.

Wheel Size: 150mm diametre

Mounting: Clamp

Static Capacity: 400kg

Tube O.D: 48mm

Closed H1: 567mm

Open H2: 832mm

Closed G1: 262mm

Open G2: 522mm

L1: 182mm

Weight: 7kg

Does not come with U bolts. Please purchase these separately from our store if required.

Total Trailer Parts is an authorised AL-KO dealer.



SKU 628100
Barcode # 2000000006307
Brand AL-KO
Shipping Weight 7.0000kg
