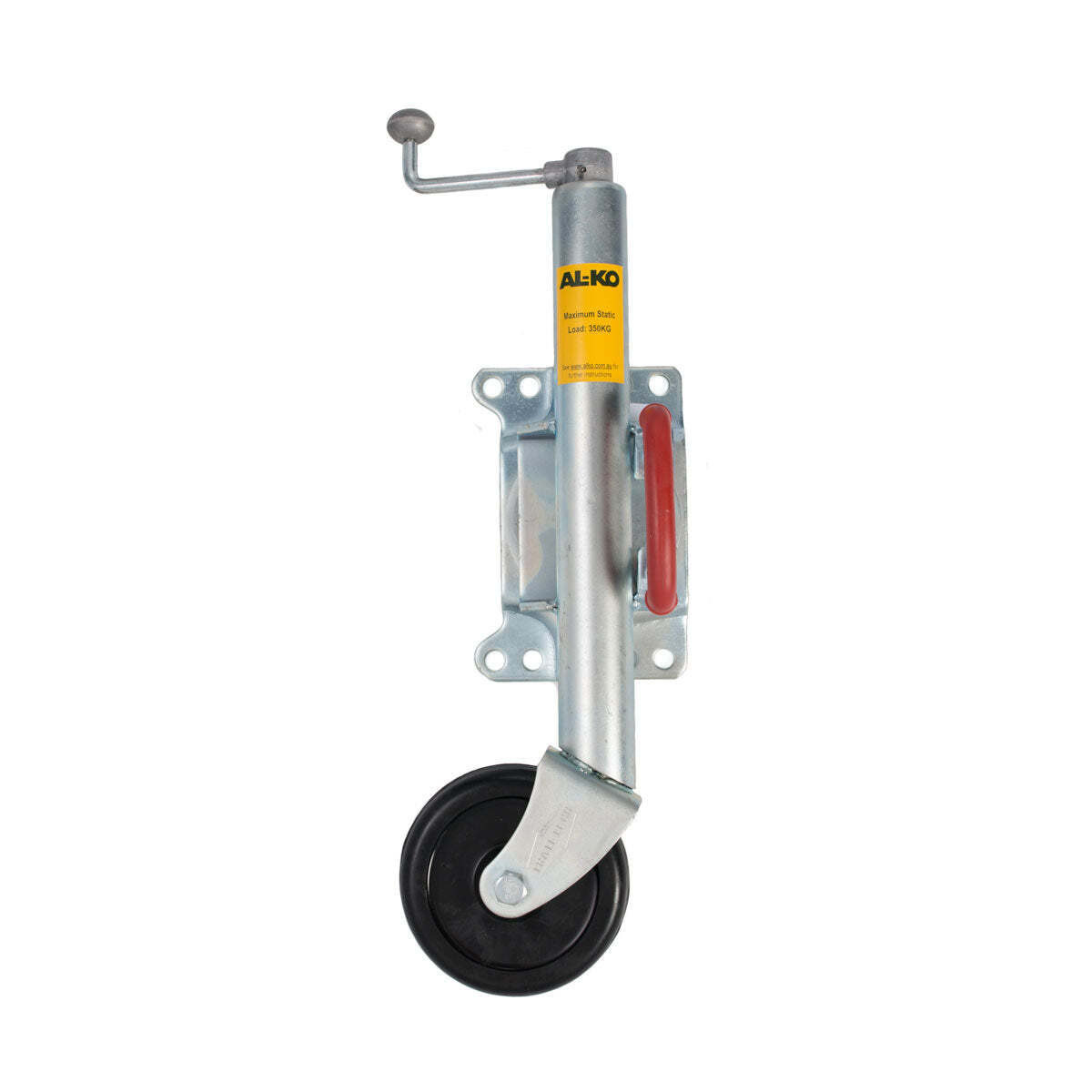

The easy to use AL-KO swivel bracket jockey wheels are unique in design and covered by a Registered Design in Australia and New Zealand.

No need to remove it from the trailer, just pull the release handle and the jockey wheel rotates into a suitable travelling position.

Hot dip galvanised, 150mm solid rubber wheel.

A selection of mounting holes allows the optional use of U bolts to attach the jockey wheel to the drawbar.

Suitable for marine use.

Does not come with U bolts. Please purchase these separately from our store if required.

Total Trailer Parts is an authorised AL-KO dealer.

Weight 6.5KG

Surface finish Hot Dipped Gal/Dac

Static Capacity 350kg

Outer Tube Diam. 48mm

D(MM) 150

H1(MM) 510

H2(MM) 760

G1(MM) 310

G2(MM) 560

U1(MM) Hole Size (014) For Draw Bar Depth:

60MM - 63

100MM - 113

75MM - 88



SKU 626190G
Barcode # 2000000006314
Brand AL-KO
Shipping Weight 7.0000kg
